Channel letter signs are individual three-dimensional exterior characters or logos, typically illuminated from within by LED modules, used heavily across retail centers, corporate offices, and healthcare facilities. Unlike flat cabinet signs, each character is an independent structure built with aluminum backs and returns (sides), an acrylic face, and enclosed electrical components, providing high daytime visibility and consistent nighttime illumination.
Primary Illumination Styles

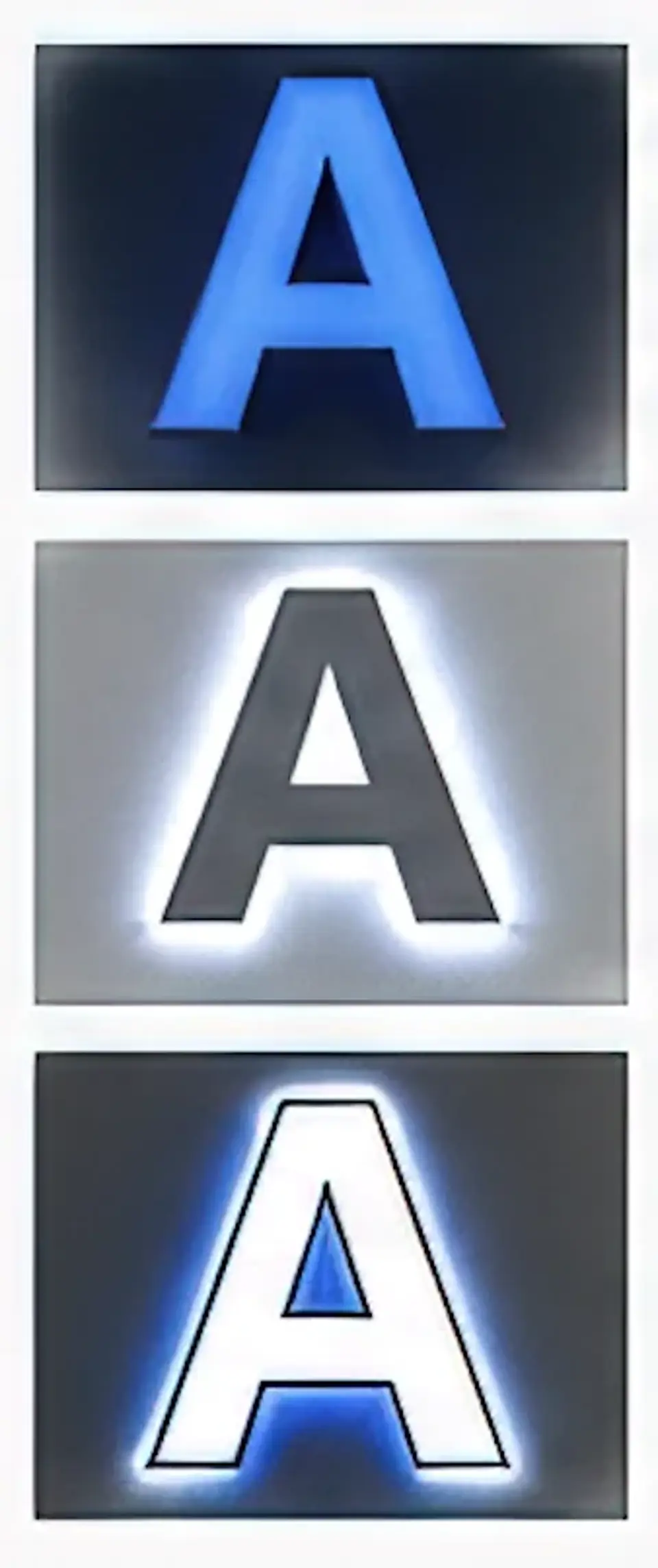

| Lighting Style | Visual Effect & Application | Key Advantages |
|---|---|---|
| Front-Lit | Light shines directly through the acrylic face; standard for retail, restaurants, and banks. | Strongest nighttime brightness and long-distance visibility; typically the most economical. |
| Halo-Lit (Reverse-Lit) | Light escapes through a clear polycarbonate back, reflecting a soft glow onto the wall behind. | Creates a sophisticated, architectural look favored by law firms, hotels, and Class A offices. |
| Combination | Illuminates both the front face and the wall behind the letter. | Highly distinctive appearance merging striking brightness with architectural depth. |
| Open Face | Exposes the lighting source (often LEDs mimicking classic neon) behind a clear or open face. | Unique vintage aesthetic popular in breweries, entertainment venues, and historic districts. |
Mounting Configurations The installation method drastically impacts aesthetic appeal, landlord compliance, and future maintenance.
Raceway Mounting: Letters are attached to a painted aluminum box that houses all power supplies and wiring. This minimizes building penetrations, simplifies maintenance, and is widely required by shopping center landlords.
Direct (Flush) Mounting: Each letter is attached directly to the facade, with wiring routed individually through the wall. This produces a cleaner architectural aesthetic but requires precise installation and additional wall penetrations.
Wireway Mounting: A slimmer alternative to raceways that conceals wiring with a reduced profile, making it much less visible from the ground.
Cost Factors and Longevity The structural aluminum bodies of professionally fabricated channel letters typically last 15 to 25 years, while internal LED components operate for 7 to 15 years and acrylic faces endure 10 to 20 years depending on UV exposure. Overall project costs fluctuate heavily based on character size, font complexity, lighting style, building accessibility (e.g., crane requirements for multi-story buildings), and electrical permitting. A frequent mistake business owners make is finalizing designs without first verifying local municipal codes and landlord sign criteria, which often leads to expensive fabrication delays and redesigns.
To learn more about engineering, maintaining, and permitting the optimal signage for your property, please review the complete guide in the attached document.
What kind of facade or building material will your new signage be mounted on?
